Cardinia Mini

Cardinia Mini converts Pioneer DJ Touch Preview and Link Cue audio signals to work with any mixer, letting you get on with the mix.

Contents

• Demo
• Features
  • Whats in the box
• Simple Plug and Play Operation
• Compatible With
• Front Panel LEDs
• Connection Diagram
• Open Source
• Firmware Downloads
• Questions?

Demo

Features

• Use CDJ-3000 Touch Cue/Preview feature with any mixer
• USB port for power and firmware updates
• Ethernet port for link connection
• RCA stereo out with high quality audio converters
• 4 tri-colour LEDs for status indication

Whats in the box

• Cardinia Mini in a black sandblasted aluminium enclosure
• Ethernet cable
• RCA Audio cable
• USB cable

Sold Out!

Simple Plug and Play Operation

Connect the USB cable to power, the Ethernet cable to your network, and the RCA audio cable into any spare mixer channel. No need for setup or configuration.

Compatible With

• CDJ-3000

NOTE: Cardinia Mini works by emulating a mixer. If a DJM mixer is detected on the same network, Cardinia Mini will automatically disable itself and let the DJM take priority. This means if you want to take advantage of Cardinia Mini's features and mix with a DJM-900NXS or DJM-2000NXS, the DJM must be disconnected from the network.

Front Panel LEDs

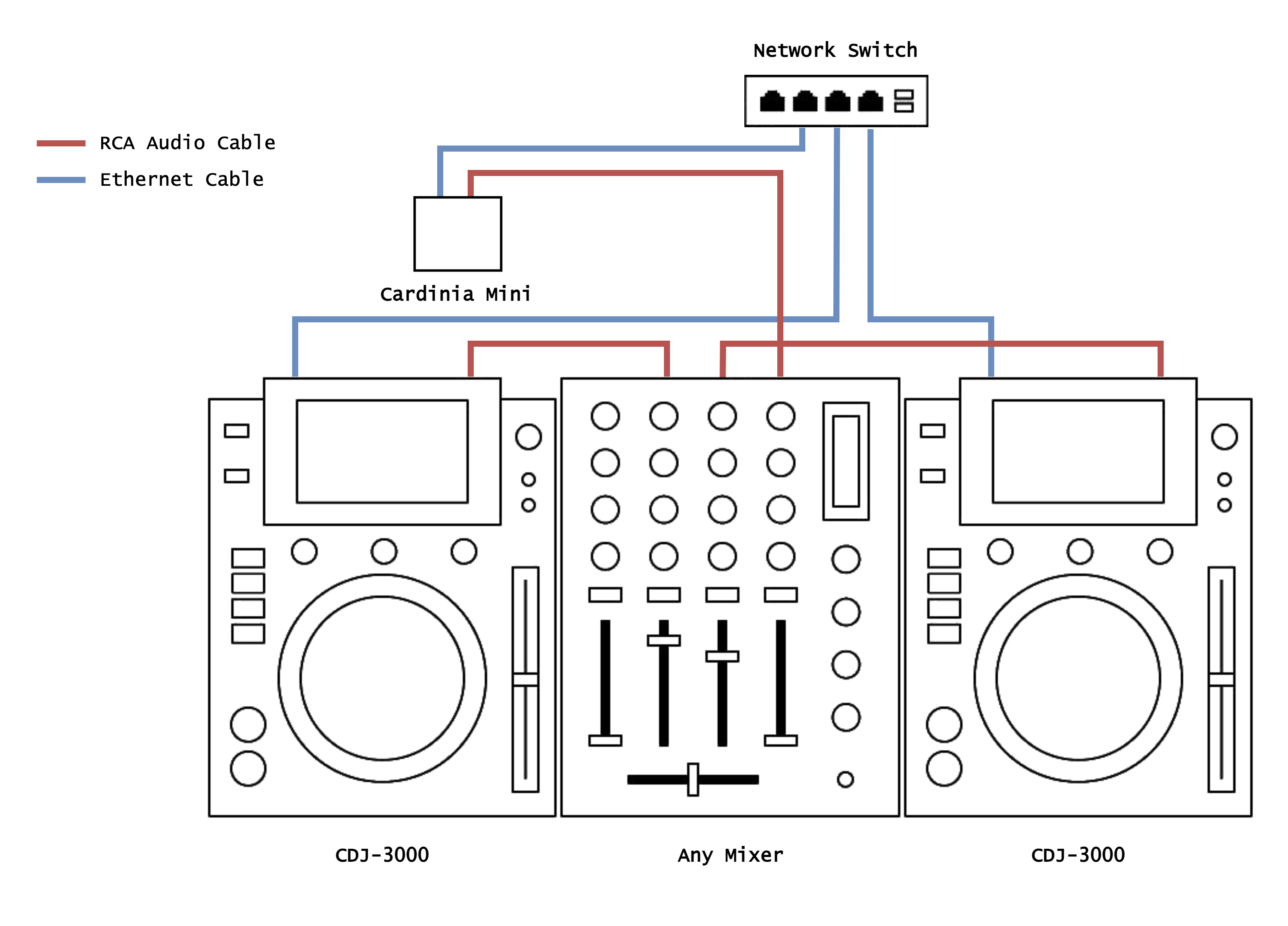

Connection Diagram

Open Source

Parts of Cardinia Mini are published open source.
See https://github.com/nudge/cardinia.

Portions contributed to the awesome dysentery project.

Firmware Downloads

Devices come preinstalled with firmware version v1.0c.
Firmware updates will appear here as they become available.

v1.01 - Initial release

v1.0c - 18-May-2023, download: [macOS | windows]

• Add support for CDJ players with numbers 5 and 6.
• Improved audio path to reduce distortion.

Questions?

Have questions or have some feedback? Feel free to contact us using the contact form.
