Coming Soon.

Cardinia Mini converts Pioneer DJ Touch Preview and Link Cue audio signals to work with any mixer, letting you get on with the mix.

Features:

  • USB port for power and firmware updates
  • Ethernet port for link connection
  • RCA stereo out with high quality audio converters
  • 4 tri-colour LEDs for status indication

Whats in the box:

  • Cardinia Mini board
  • Ethernet cable
  • RCA Audio cable
  • USB cable

Simple Plug and Play operation:

Connect the USB cable to power, the Ethernet cable to your network, and the RCA audio cable into any spare mixer channel. No need for setup or configuration.

Compatible with:

  • CDJ-3000

NOTE: Cardinia Mini works by emulating a mixer. If a DJM mixer is detected on the same network, Cardinia Mini will automatically disable itself and let the DJM take priority. This means if you want to take advantage of Cardinia Mini's features and mix with a DJM-900NXS or DJM-2000NXS, the DJM must be disconnected from the network.

⚠️ Cardinia is most likely not compatible with XDJ-XZ.

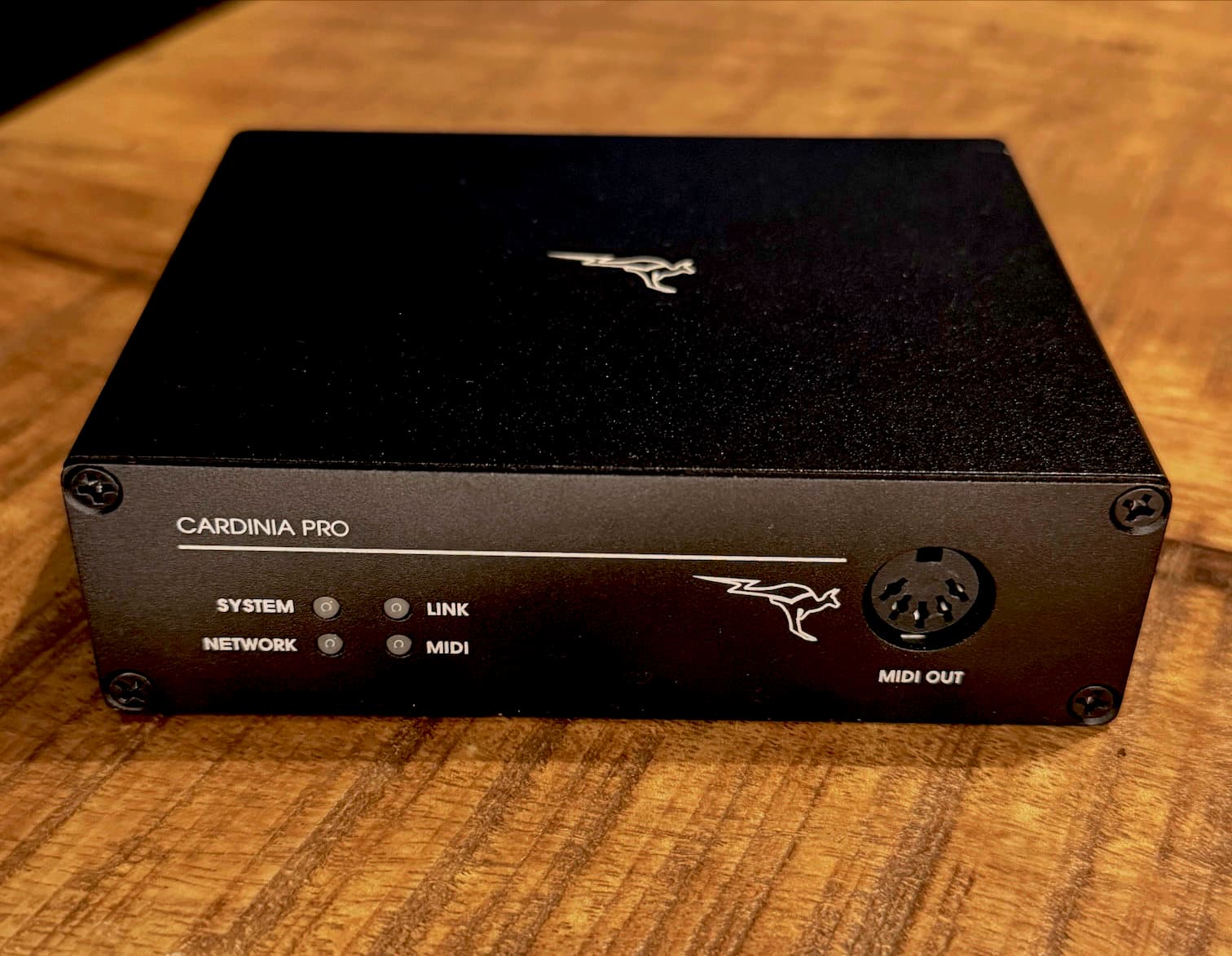

Front Panel LEDs:

System LED Link LED
Network LED Conflict LED

System LED Network LED Link LED Conflict LED
System Ready ☀ Green
Conflict ☀ Red
No Network Detected ☀ Red
Connecting to Network ☀ Orange
Connected to Network ● Green
Connecting to Link ☀ Orange
Connected to Link
with Activity
● Green with
☀ Orange

☀ - Blinking, ● - Solid

Connection Diagram:

How do I get one?

Cardinia Mini is in pre-production.

If you are interested in purchasing a unit, send me an email to david [at] cardinia.net

Demo:

Open Source:

Parts of Cardinia Mini are published open source.
See https://github.com/nudge/cardinia-mini.

Portions contributed to the awesome dysentery project.
